Usage¶

All examples here are based on dj-notebook's test project at:

github.com/pydanny/dj-notebook/blob/main/tests/django_test_project

Activation¶

First, activate the project. If that doesn't work, try one of the other methods for activating dj-notebook.

In [3]:

from dj_notebook import activate

plus = activate("book_store.settings")

from dj_notebook import activate plus = activate("book_store.settings")

Now we can use the ORM:

In [5]:

from django.contrib.auth import get_user_model

User = get_user_model()

# Clean up the users
User.objects.all().delete()

# Create some users
User.objects.create_user("Audrey")
User.objects.create_user("Daniel")

# Query the users
User.objects.all()

from django.contrib.auth import get_user_model User = get_user_model() # Clean up the users User.objects.all().delete() # Create some users User.objects.create_user("Audrey") User.objects.create_user("Daniel") # Query the users User.objects.all()

Out[5]:

<QuerySet [<User: Audrey>, <User: Daniel>]>

Usage Plus¶

When you activated the Django environment, you instantiated a variable called 'plus'. The 'plus' variable is an object that contains everything loaded from django-extensions' shell_plus. Here's a demonstration, let try running this snippet:

In [ ]:

plus.User.objects.all()

plus.User.objects.all()

Out[ ]:

<QuerySet [<User: Audrey>, <User: Daniel>]>

Or this:

In [ ]:

for perm in plus.Permission.objects.all()[:5]:
    print(perm)

for perm in plus.Permission.objects.all()[:5]: print(perm)

admin | log entry | Can add log entry
admin | log entry | Can change log entry
admin | log entry | Can delete log entry
admin | log entry | Can view log entry
auth | group | Can add group

Dataframes from QuerySets¶

New in dj-notebook 0.3.0

Powered by django-pandas, we can also trivially turn any Django QuerySet into a Dataframe.

In [ ]:

plus.read_frame(plus.User.objects.all())

plus.read_frame(plus.User.objects.all())

Out[ ]:

	id	password	last_login	is_superuser	username	first_name	last_name	email	is_staff	is_active	date_joined
0	30	!e91xGexuejHJTtcK5UK6VLPs74uTojmlMVbBCHF1	None	False	Audrey				False	True	2023-10-21 12:54:07.318920+00:00
1	31	!wqNcAZOEw4KUIQdaIzMyf46lgEYKbrLsGDHZgqtE	None	False	Daniel				False	True	2023-10-21 12:54:07.319889+00:00

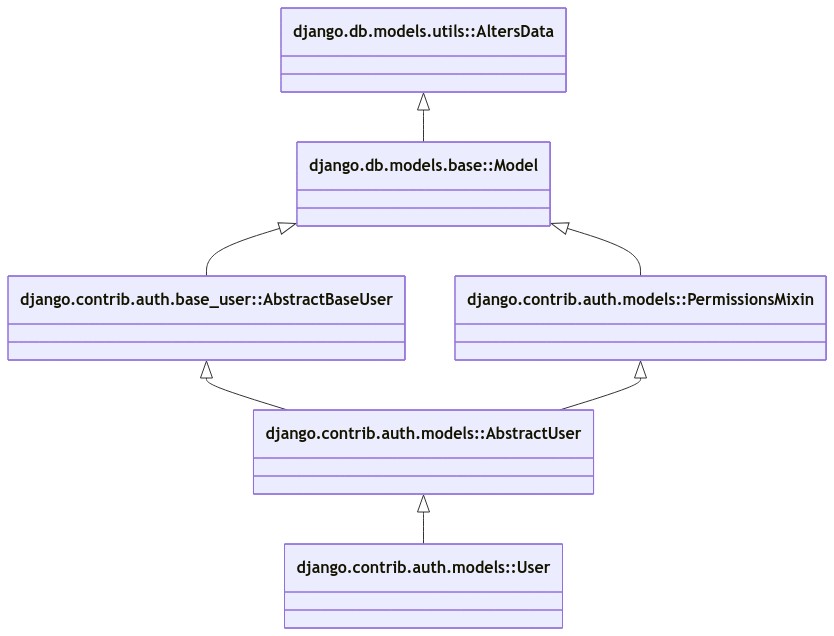

Diagrams of Objects¶

We're not done yet!

We also provide a utility for introspection of classes, which can be useful in sophisticated project architectures. Let's see what happens when we use the plus.diagram() function:

In [ ]:

plus.diagram(plus.User)

plus.diagram(plus.User)

Visualizing relations between models¶

New in dj-notebook 0.5.0

Useful for introspecting new or existing projects!

In [ ]:

plus.model_graph(plus.User)

plus.model_graph(plus.User)

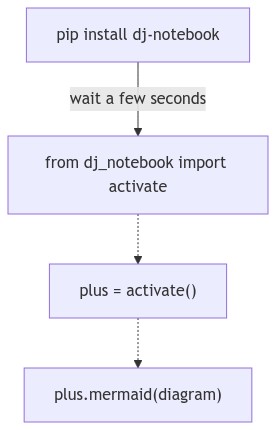

Rendering mermaid diagrams using dj-notebook¶

New in dj-notebook 0.4.0

Mermaid is such a useful tool tool that dj-notebook provides a shortcut.

In [ ]:

diagram = """
flowchart TD
    A[pip install dj-notebook]
    B[from dj_notebook import activate]
    C["plus = activate()"]
    D["plus.mermaid(diagram)"]

    A -->|wait a few seconds| B
    B -.-> C
    C -.-> D
"""

plus.mermaid(diagram)

diagram = """ flowchart TD A[pip install dj-notebook] B[from dj_notebook import activate] C["plus = activate()"] D["plus.mermaid(diagram)"] A -->|wait a few seconds| B B -.-> C C -.-> D """ plus.mermaid(diagram)

Printing what dj-notebook loads from django-extensions¶

Vastly improved in dj-notebook 0.4.0

There are two ways to get a list of the loaded items by dj-notebook's activate() function:

# Print all the objects to the screen on activate
plus = activate(quiet_load=False)
# Print the objects to the screen at any time
plus.print()

Here is plus.print() in action:

In [4]:

plus.print()

plus.print()

# Shell Plus Model Imports
from book_outlet.models import Address, Author, Book, Country
from django.contrib.admin.models import LogEntry
from django.contrib.auth.models import Group, Permission, User
from django.contrib.contenttypes.models import ContentType
from django.contrib.sessions.models import Session
# Shell Plus Django Imports
from django.core.cache import cache
from django.conf import settings
from django.contrib.auth import get_user_model
from django.db import transaction
from django.db.models import Avg, Case, Count, F, Max, Min, Prefetch, Q, Sum, When
from django.utils import timezone
from django.urls import reverse
from django.db.models import Exists, OuterRef, Subquery


Dataframes from CSVs¶

New in dj-notebook 0.7.0

This turns strings or files on defined paths into Dataframes.

In [5]:

csv_string = """Name,FirstLetter
Daniel,D
Audrey,A"""

# Also works with plus.csv_to_df(pathlib.path('path/to/data.csv'))
plus.csv_to_df(csv_string)

csv_string = """Name,FirstLetter Daniel,D Audrey,A""" # Also works with plus.csv_to_df(pathlib.path('path/to/data.csv')) plus.csv_to_df(csv_string)

Out[5]:

	Name	FirstLetter
0	Daniel	D
1	Audrey	A
